Product Detail
H-WGWDLDIR(EP35)

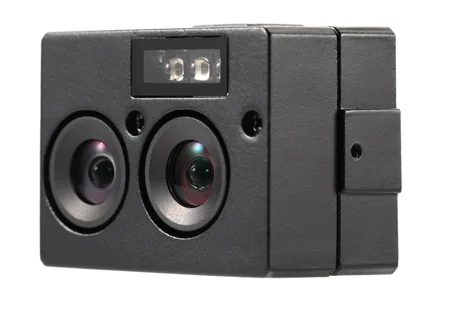

A stereo RGB/IR camera module for face recognition and liveness detection.
Product Detail
Technical Specifications
- Resolution
- RGB 2 MP + IR 2 MP
- Standard Lens
- 3.5mm
- Field of View
- H 85° · V 60°
- Wide Dynamic Range
- 115dB
- Dimensions
- 42×32×25mm
Product Detail
Configuration Notes
- Optimal recognition distance: 30–120 cm
- frame rate: 25–30 fps
- infrared light: 850 nm
- optional 6 mm focal-length lens to change the viewing angle and optimal recognition distance
- single 3 m cable with GH1.25-5 + PH1.25-2 terminals
- supports a tripod or heavy-duty clamp stand with a 1/4-inch mount.
The catalog retains historical models from the source list. Availability and specifications are subject to project confirmation.
